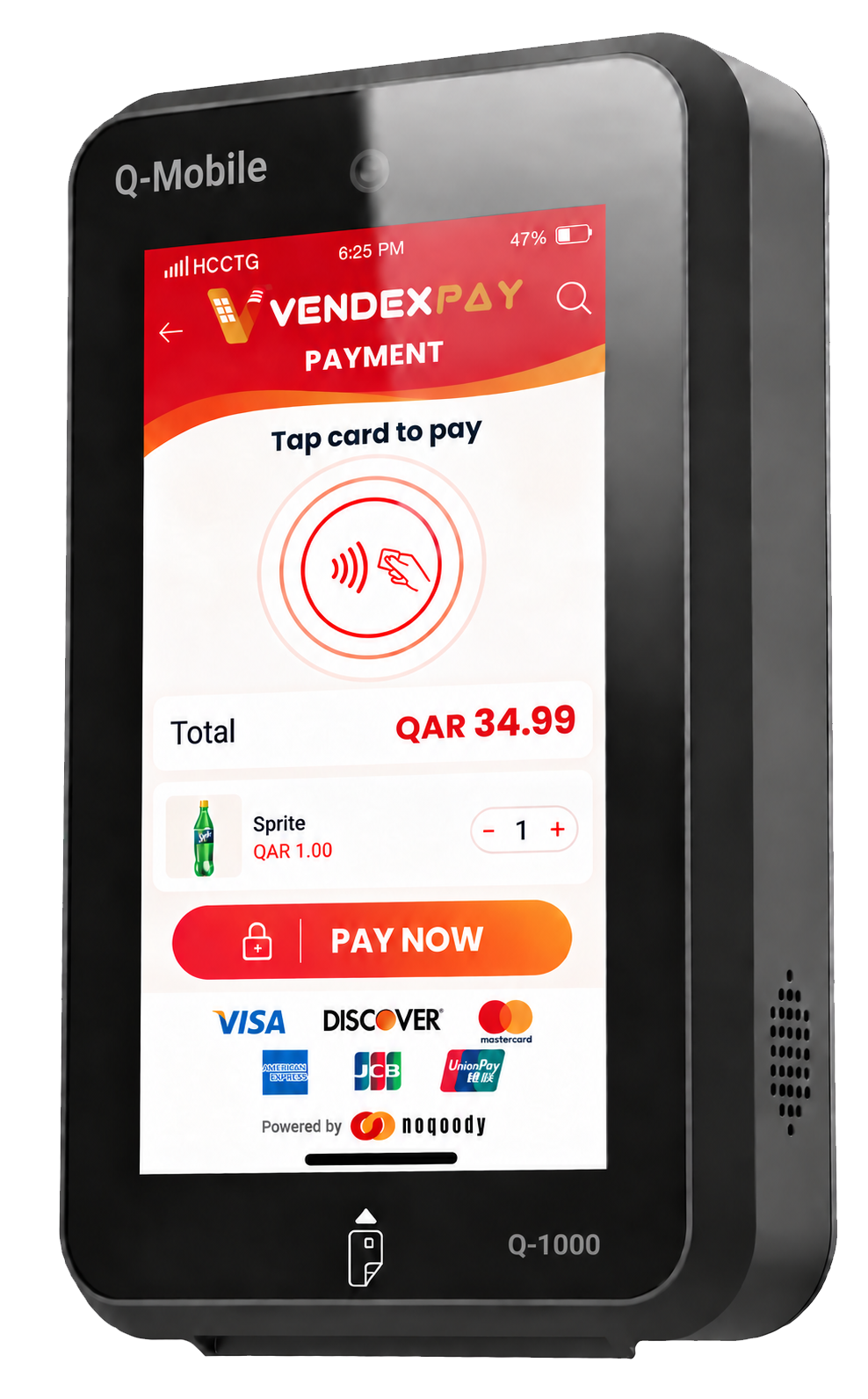

The Vendex Pay VX-1 terminal
One device on the front of your machine takes every payment your customer can offer — swipe, chip, tap, QR wallet, face or palm — and settles it straight into your own account. Unbox it, power it on, scan the pairing code: it appears in your hub with slots, prices and payment rails already live.
Scan, tap, or simply be recognised
Swipe & chip insert
EMV Level 1 & 2 certified reader with magstripe fallback and PIN pad on glass.
Contactless tap
Visa, Mastercard, Himyan, Apple Pay, Google Pay and Samsung Pay at 13.56 MHz.
QR wallets
Customer scans and pays from their phone; the vend releases the moment the gateway confirms.
Face recognition
Front 5 MP camera with liveness detection; only an irreversible template hash leaves the device.
Palm recognition
Infrared palm-vein scan for enrolled staff and members — no card, no phone.
Always connected
4G LTE with Wi-Fi failover, signed heartbeats every minute into your Vendex Pay hub.
Every part of the device has a matching screen in Vendex Pay
The device on the left and the payment screen on the right are the same product. Each numbered part of the hardware is the same numbered step the attendant and the customer see in the app.
- 1Face camera (top bezel)5 MP camera with liveness check — drives the Face mode in the app; only a one-way template code is sent.
- 27" payment screenRuns the same Vendex Pay payment shell you see on the right: amount, product, mode buttons and the result.
- 3Palm sensor (right of the glass)Infrared palm-vein reader — the app's Palm mode for enrolled staff and members.
- 4Contactless zone (screen centre)13.56 MHz tap for cards, Apple Pay, Google Pay and Samsung Pay — the app's Tap mode.
- 5Card slot (lower edge)EMV chip insert with magstripe swipe fallback and PIN on glass — the app's Insert and Swipe modes.
- 6Machine harness (rear)MDB / DEX and RS-232 to the vending board: the app releases the slot the moment the payment is approved.
Amount due
9.00 QAR
Red Bull 250 ml · 1 × 9.00
Approved · 9.00 QAR
Auth A418205 · Visa ••4291 · invoice INV-20260919-86O8U3
The same screen your attendant uses live at /terminal/<serial> — the queue, the slot grid and the payment modes below are not a mock-up of a different product.
Built for the machine, not the counter
| Model | Vendex Pay VX-1 (Q-Mobile / DTP Qatar build) |
|---|---|
| Display | 7" 1280×800 hardened touch glass, 500 nits |
| Processor | Octa-core 2.0 GHz, 4 GB RAM, 32 GB storage |
| Operating system | Android 13, locked-down Vendex Pay payment shell |
| Card reader | EMV chip + magstripe + contactless (PCI PTS 6.x, P2PE) |
| Biometrics | 5 MP face camera with liveness, infrared palm-vein sensor |
| Scanner | 2D QR / barcode imager for wallets and product codes |
| Connectivity | 4G LTE, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, Ethernet via dock |
| Machine interface | MDB / DEX and RS-232 ECR harness for snack, drink and coffee machines |
| Printer | 58 mm thermal receipt printer (optional) |
| Dimensions | 182 × 88 × 62 mm, 420 g — fits the standard vending bezel cut-out |
| Power | 12 V from the machine loom, 4,000 mAh backup battery |
| Certification | PCI PTS, EMVCo L1/L2, CE, QCRA type approval (Qatar) |
Buy it, bundle it or rent it
Prices exclude VAT where applicable. Transaction fees follow the rate card set for your sites in the Vendex Pay hub — no separate acquiring contract to negotiate.
Prices below are for operators collecting with their own provider. If Noqoody Pay collects your machine takings, the device is subsidised to QAR 1,450 and the software plan is lower — compare both on the plans page.
VX-1 Terminal
QAR 2,450
one-off, per terminal
- Terminal + machine harness
- Pre-paired to your hub
- 12-month warranty
- Delivery in Qatar included
Most ordered
VX-1 Plus bundle
QAR 2,890
one-off, per terminal
- Everything in VX-1
- Palm-vein module + receipt printer
- On-site installation by DTP Qatar
- 24-month warranty & swap unit
Rent to own
QAR 149
per terminal, per month · 24 months
- Zero upfront hardware cost
- Replacement unit inside 48 h
- Firmware and certifications included
- Own it at month 24
Ready to take your first tap?
Order the terminal, pair it to a machine and every payment lands in your hub with its own invoice — the same minute it happens.
